Allan Block Courtyard Landscape Wall
The Allan Block Courtyard Collection’s unique design allows you to build a variety of projects using five basic pieces.

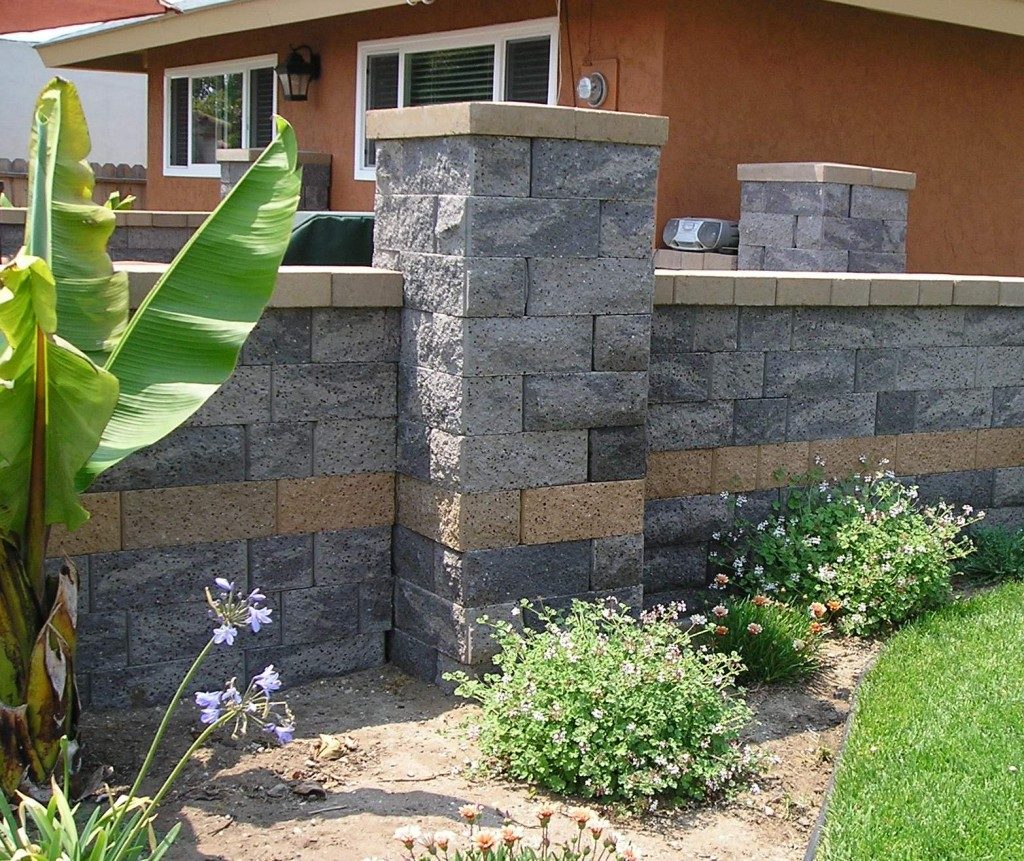

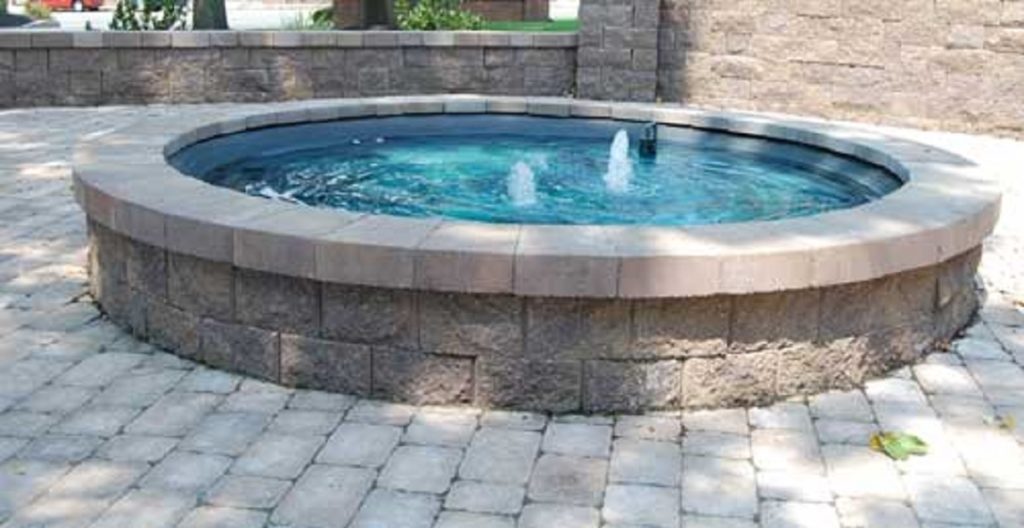

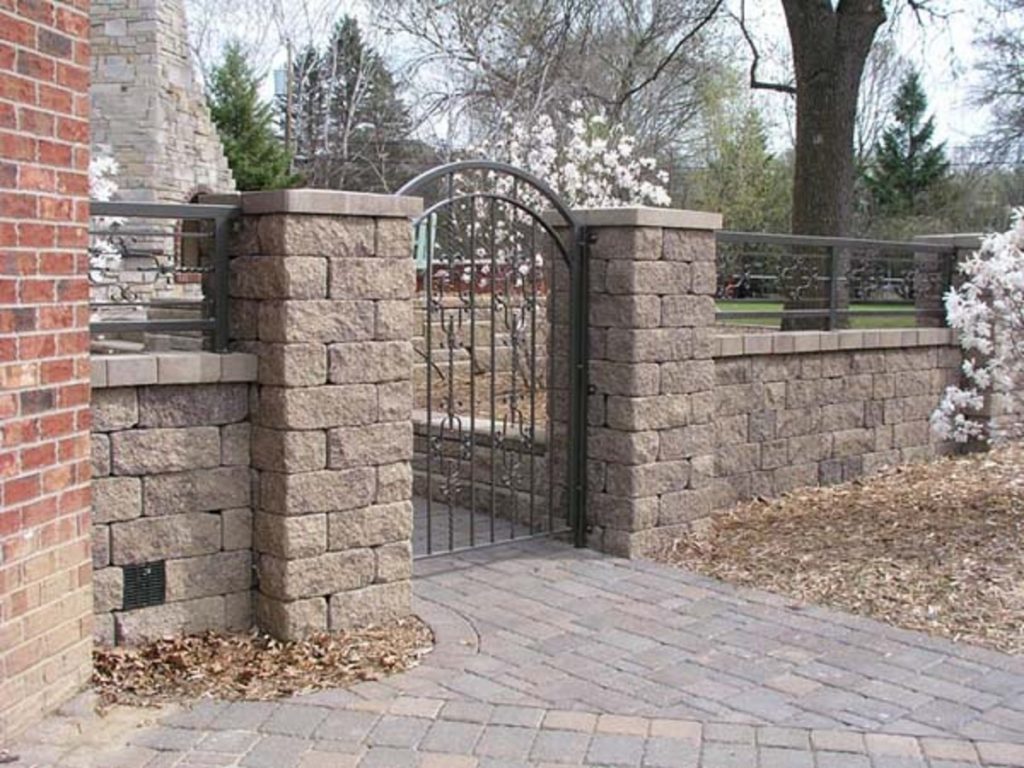

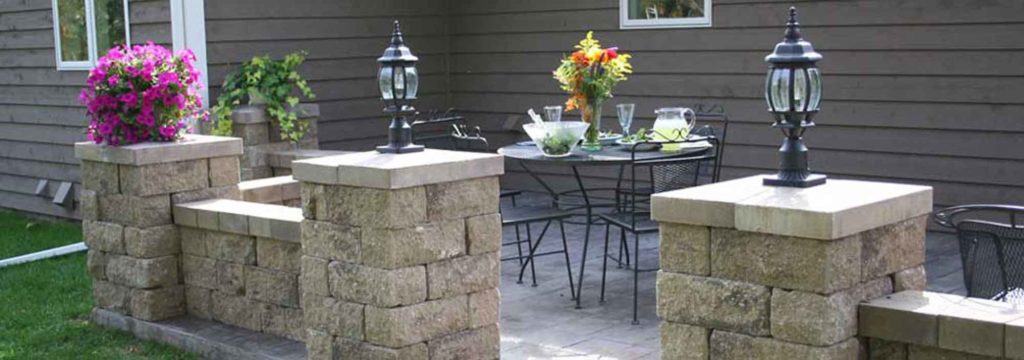

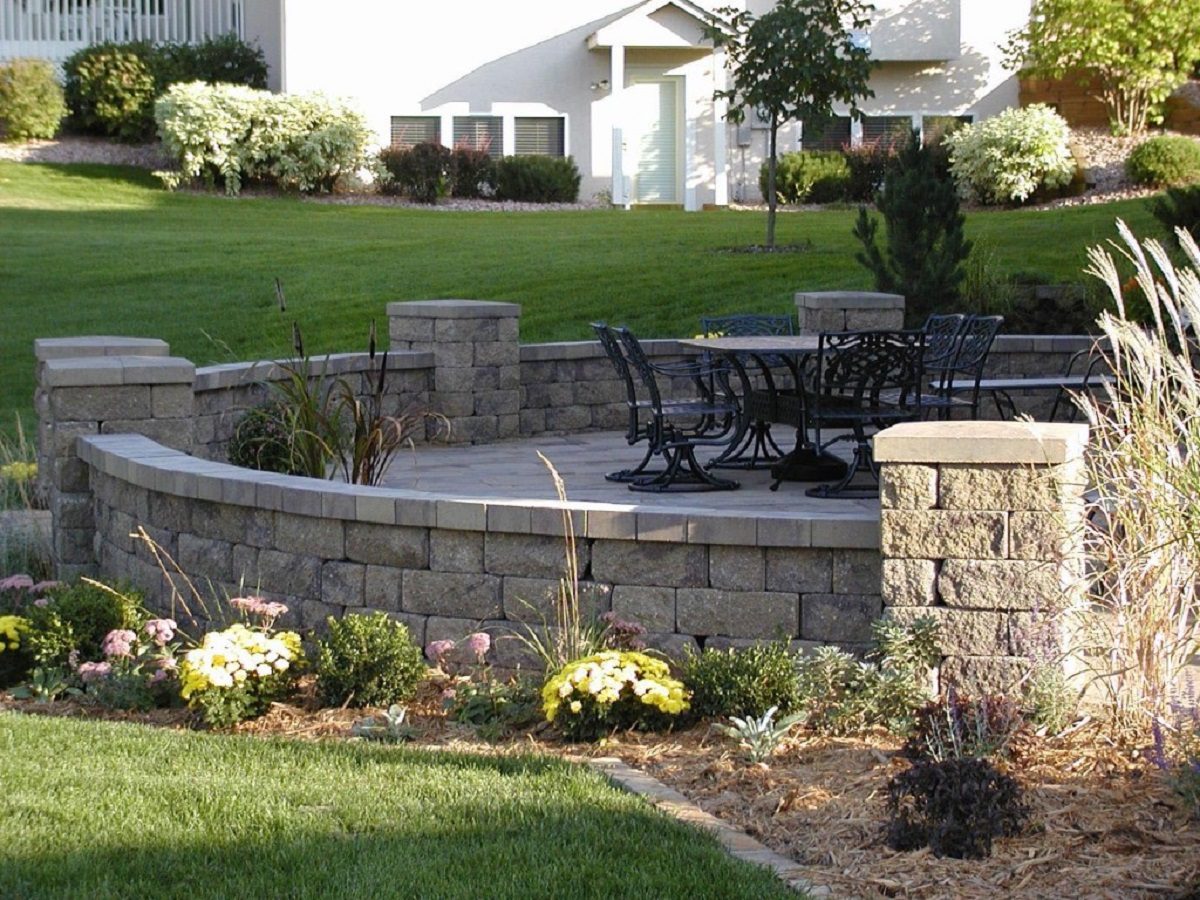

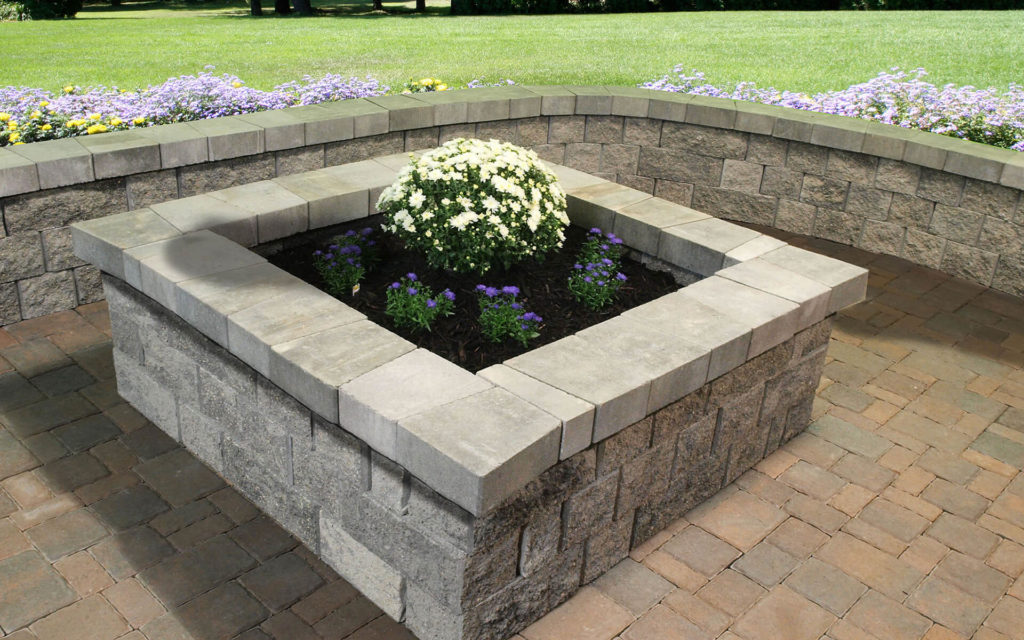

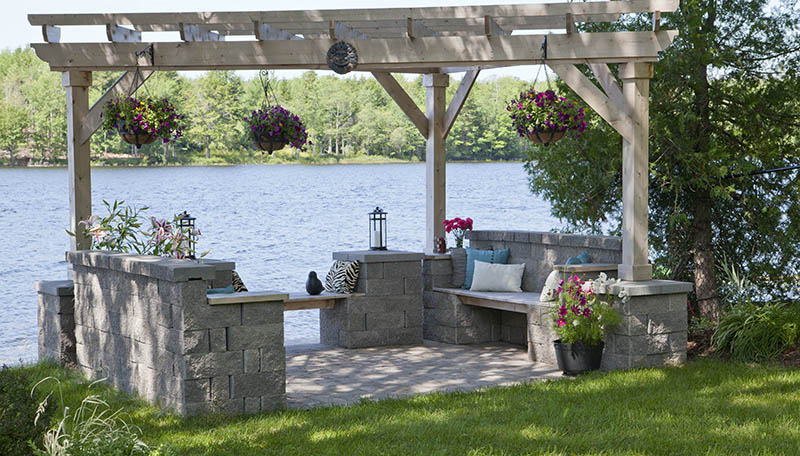

Bring your designs to life with serpentine curves, straight walls and decorative posts – all with one simple system.
| Photo | Product Number | Description | Color | Dimensions (WxHxL) | Weight | No./ Pallet |
|---|---|---|---|---|---|---|

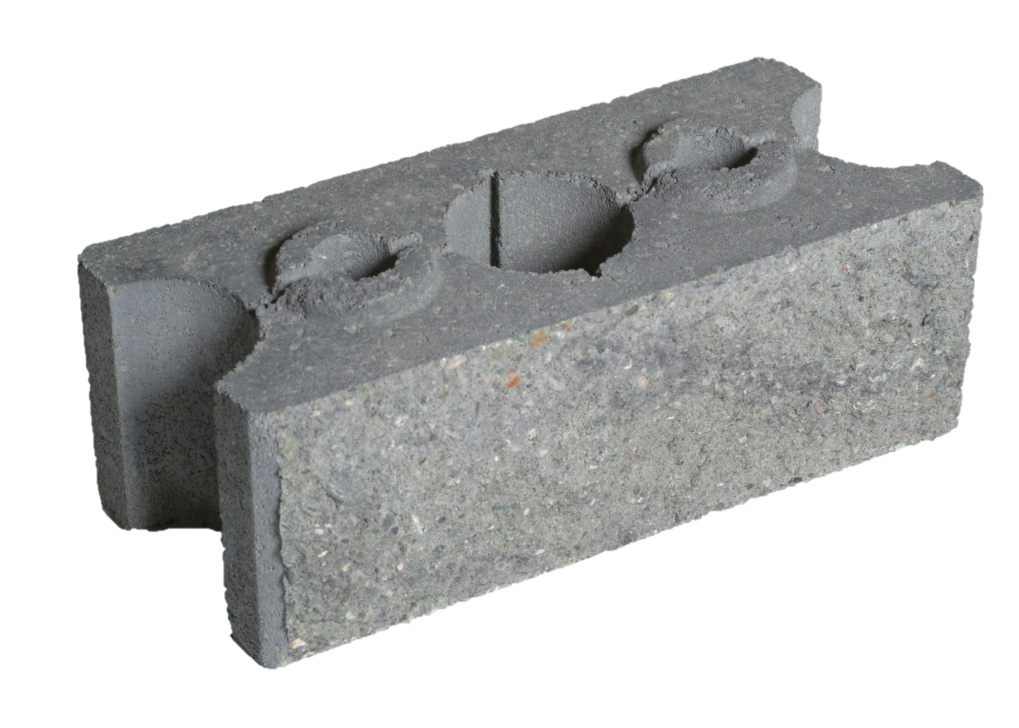

| ABCYD GRRB | Dublin Full Block | Gray/ Raven Black | 7″ x 6″ x 16.5″ | 42 lbs | 60 |

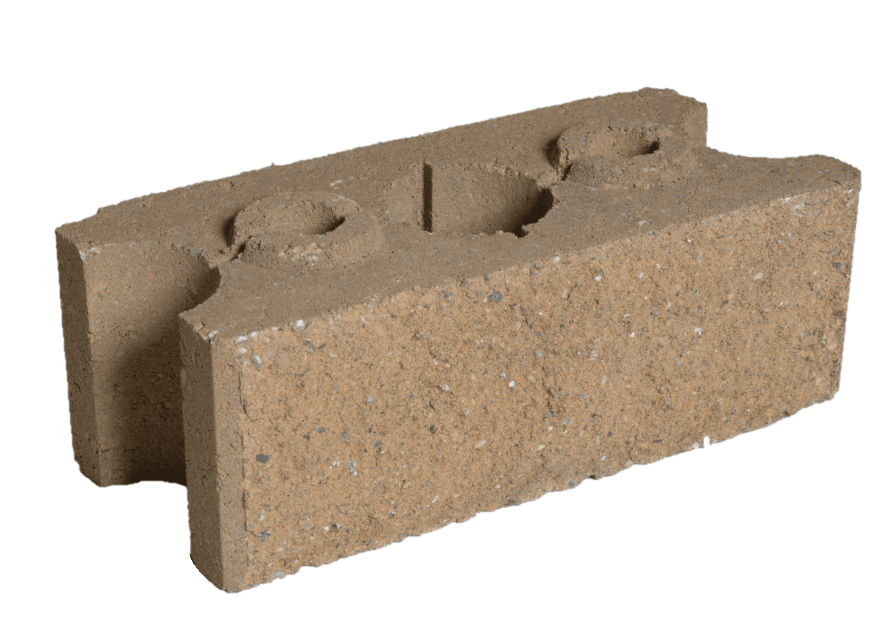

| ABCYD CB | Dublin Full Block | Caribou Buff | 7″ x 6″ x 16.5″ | 42 lbs | 60 |
| ABCYD GR | Dublin Full Block | Gray | 7″ x 6″ x 16.5″ | 42 lbs | 60 | |

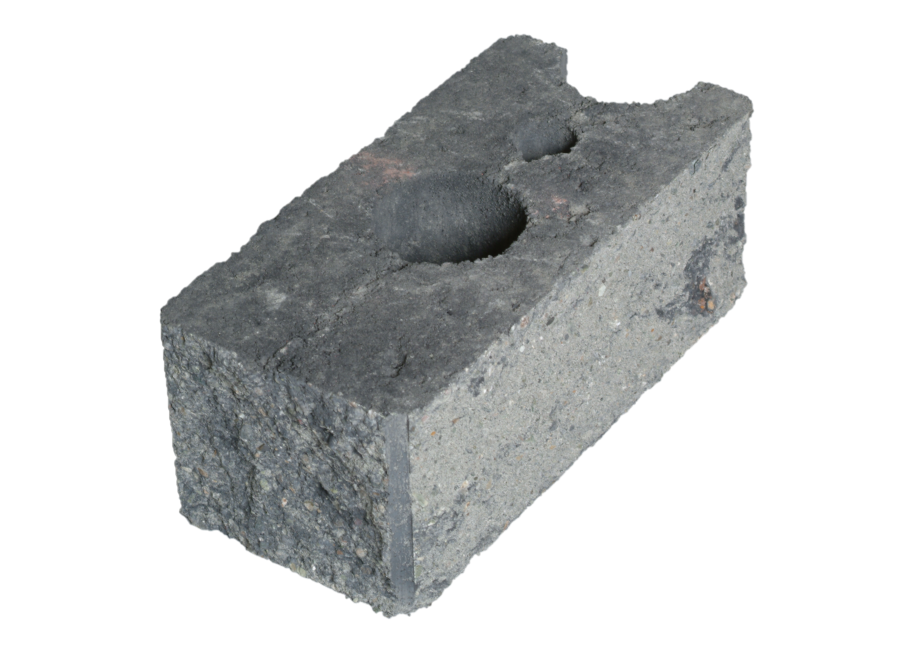

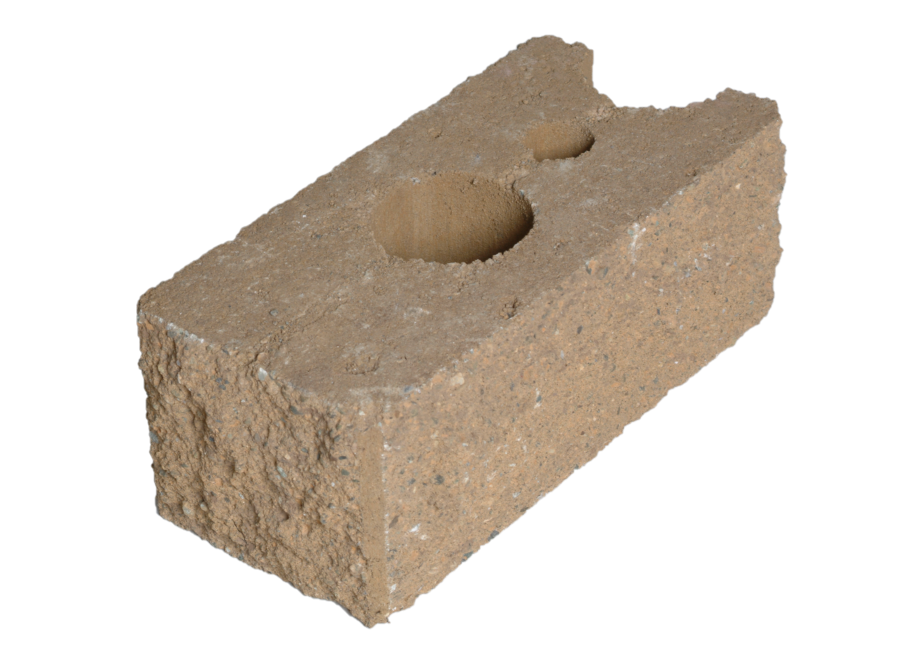

| ABCY CRN GRRB | Corner | Gray/ Raven Black | 7″ x 6″ x 15.5″ | 44 lbs | 75 |
| ABCY CRN CB | Corner | Caribou Buff | 7″ x 6″ x 15.5″ | 44 lbs | 75 |
| ABCY CRN GR | Corner | Gray | 7″ x 6″ x 15.5″ | 44 lbs | 75 | |

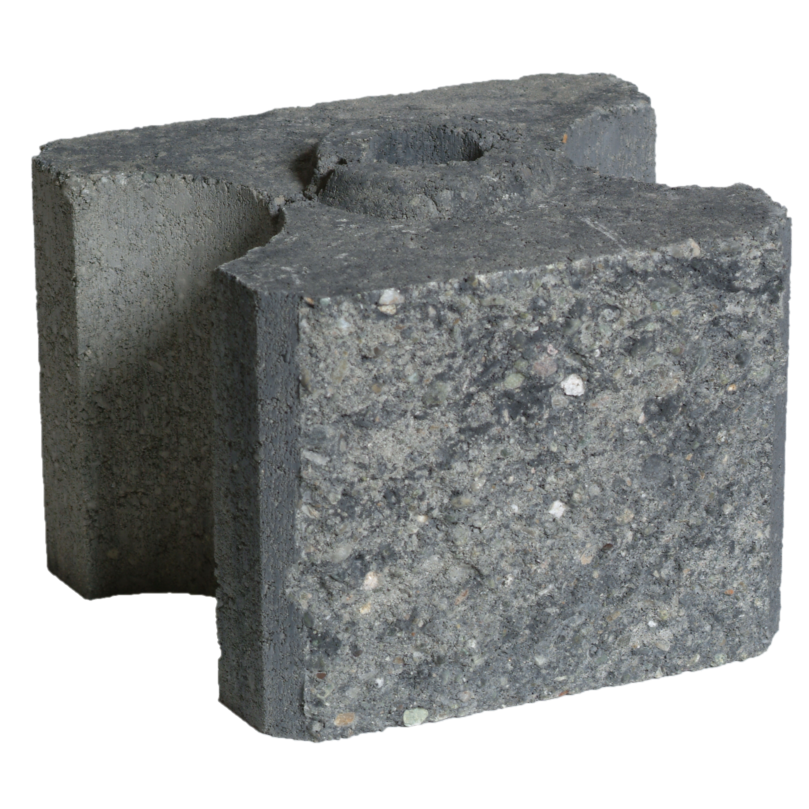

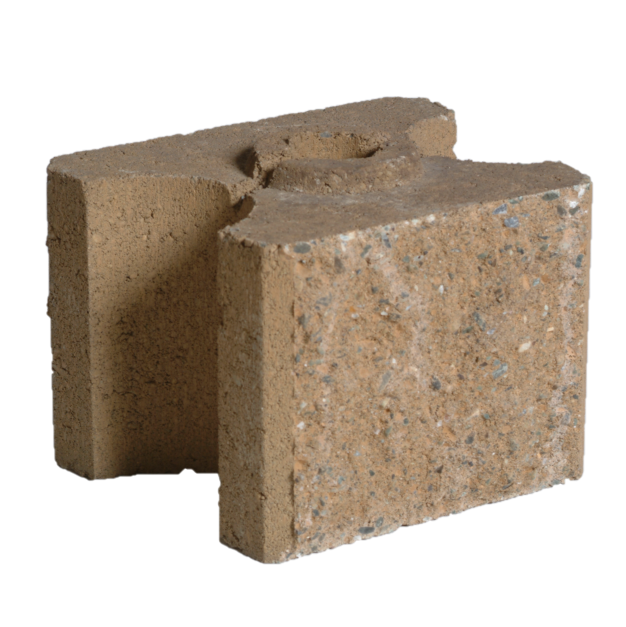

| ABCYY GRRB | York Half Block | Gray/ Raven Black | 7″ x 6″ x 9″ | 20 lbs | 90 |
| ABCYY CB | York Half Block | Caribou Buff | 7″ x 6″ x 9″ | 20 lbs | 90 |
| ABCYY GR | York Half Block | Gray | 7″ x 6″ x 9″ | 20 lbs | 90 | |

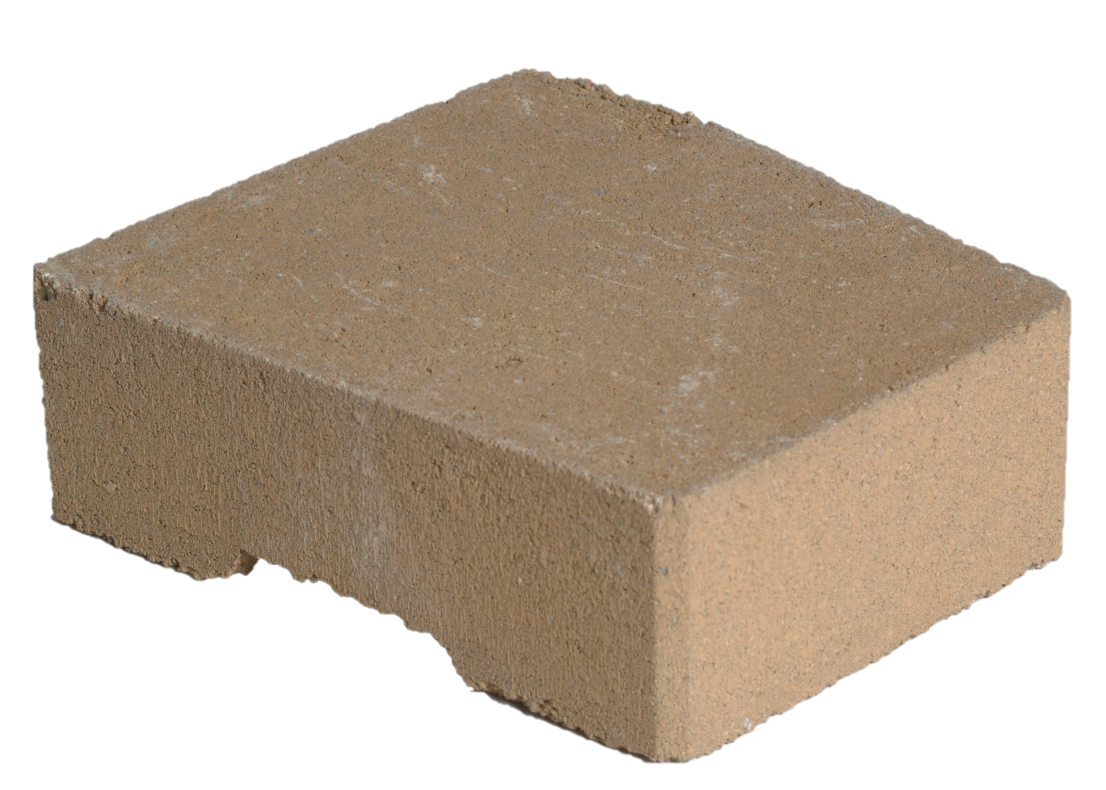

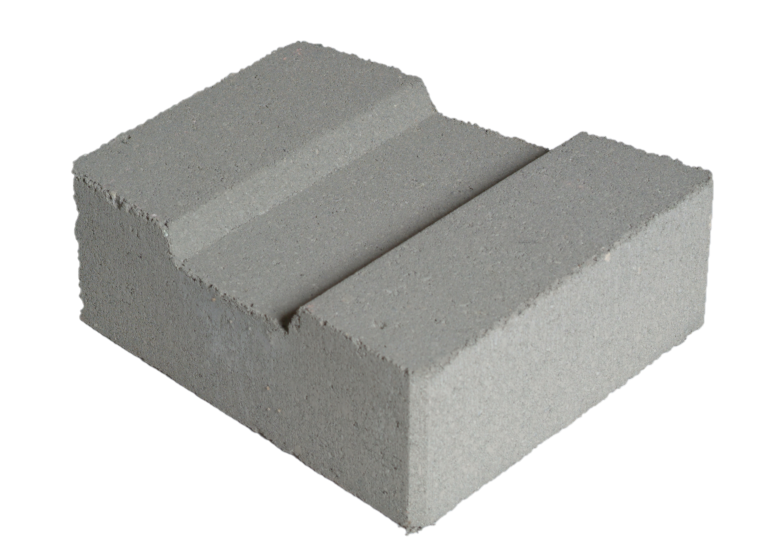

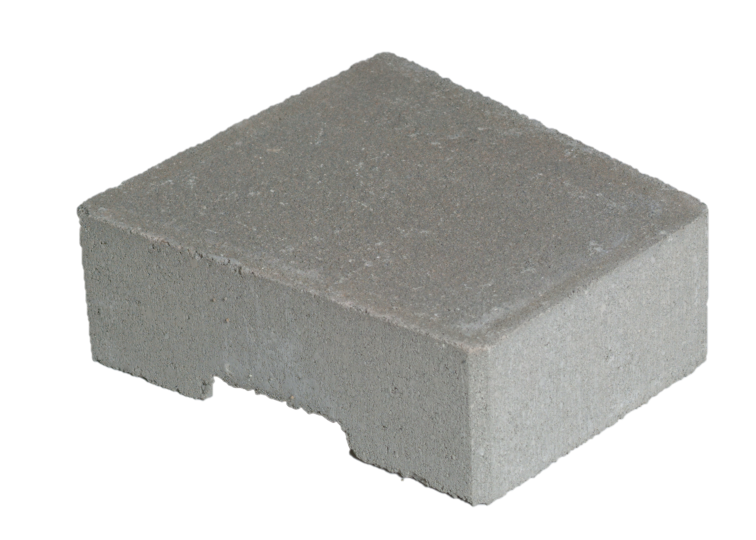

| ABCY WCGR | Wall Cap | Gray | 10″ x 3.5″ x 7″/9.25″ | 24 lbs | 120 |
| ABCY WCCB | Wall Cap | Caribou Buff | 10″ x 3.5″ x 7″/9.25″ | 24 lbs | 120 |

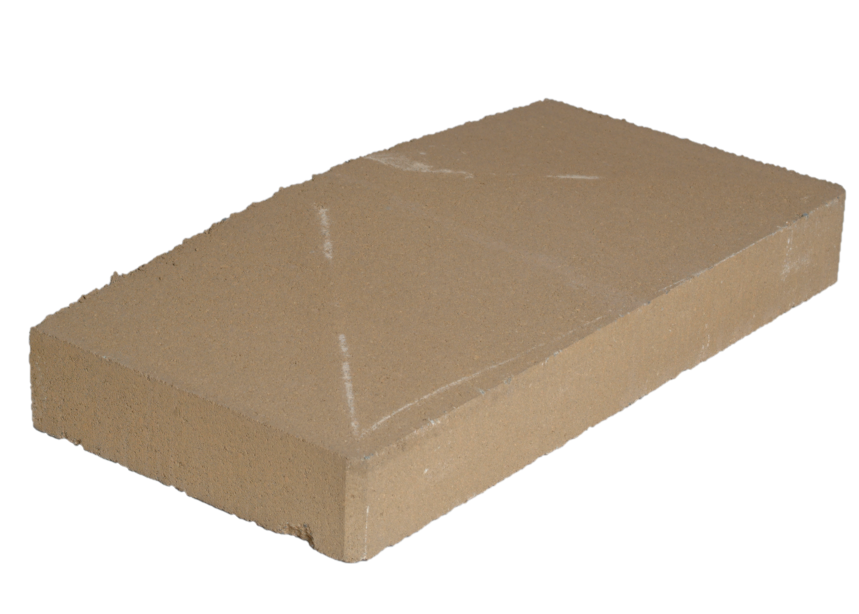

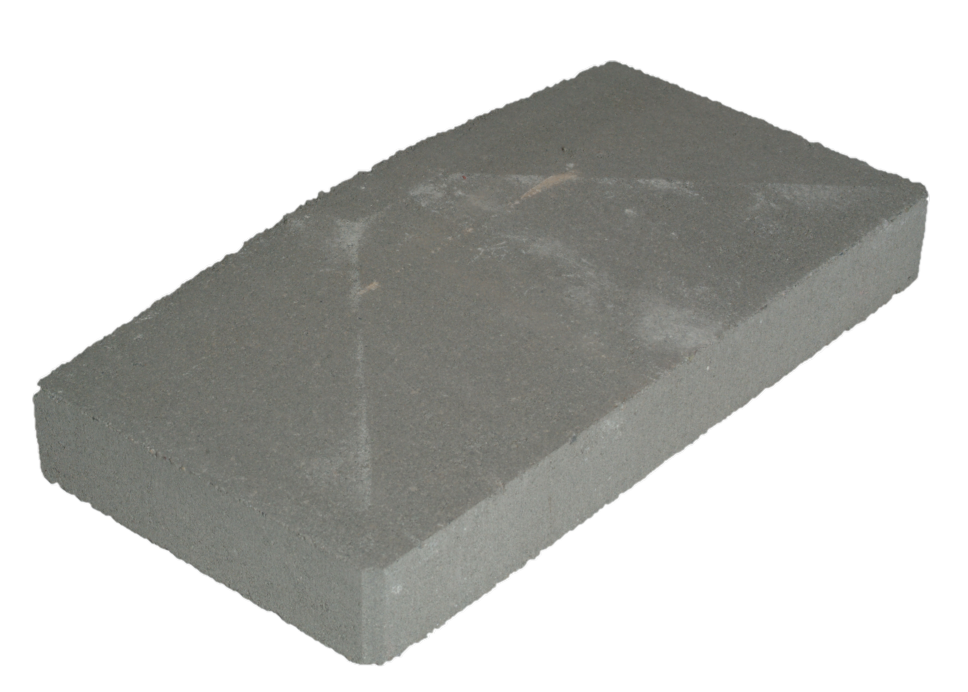

| ABCY PCGR | Post Cap | Gray | 12″ x 3″ x 24″ | 74 lbs | 36 |
| ABCY PCCB | Post Cap | Caribou Buff | 12″ x 3″ x 24″ | 74 lbs | 36 |
For estimating more detailed projects with a combination of block sizes, curved and straight walls, see our representative or visit www.allanblock.com for the Courtyard estimating tool.
| Number of DUBLIN Blocks Needed for Walls | |||||||
| Approximate Wall Height | Wall Length | ||||||
| 4 ft (1.2 m) | 5 ft (1.5 m) | 8 ft (2.4 m) | 12 ft (3.7 m) | 20 ft (6.1 m) | |||
| 1 course | 6 in | 150 mm | 3 | 4 | 6 | 9 | 15 |
| 2 courses | 12 in | 305 mm | 6 | 8 | 12 | 18 | 30 |
| 3 courses | 18 in | 460 mm | 9 | 12 | 18 | 27 | 45 |
| 4 courses | 24 in | 610 mm | 12 | 16 | 24 | 36 | 60 |
| 5 courses | 30 in | 760 mm | 15 | 20 | 30 | 45 | 75 |
| Wall Caps Needed | 6 | 8 | 12 | 18 | 30 | ||
| For wall panels using YORK blocks, just double the numbers above. | |||||||
| Number of CORNER Blocks Needed for Posts | |||||||
| Approximate Wall Height | Number of Posts | ||||||
| 1 | 2 | 3 | 4 | 5 | |||
| 2 courses | 12 in | 305 mm | 8 | 16 | 24 | 32 | 40 |
| 3 courses | 18 in | 460 mm | 12 | 24 | 36 | 48 | 60 |
| 4 courses | 24 in | 610 mm | 16 | 32 | 48 | 64 | 80 |
| 5 courses | 30 in | 760 mm | 20 | 40 | 60 | 80 | 100 |
| 6 courses | 36 in | 915 mm | 24 | 48 | 72 | 96 | 120 |
| Post Caps Needed | 2 | 4 | 6 | 8 | 10 | ||
RESTOCKING CHARGE: A restocking charge of 20% is applied to all returned block, except special order block where no returns are allowed.
