Coil Loop Insert

Dayton Superior Tilt-Up Handbook

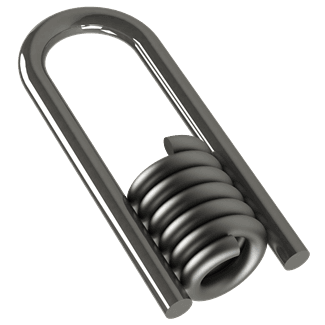

Although simple in design and fabrication, the B16 Straight Coil Loop Insert is highly efficient for lifting and handling precast concrete elements.

Special inserts for use with larger diameter coil bolts, or with loops having longer lengths and of heavier wire can be furnished, if required, on special order.

Product NumberDescriptionSizePackaging
MB 430081Coil Loop Insert B-16 Straight3/4″ x 6″each
MB 430065Coil Loop Insert B-16 Straight3/4″ x 4″each
MB 430162Coil Loop Insert B-16 Straight1″ x 6″each
MB 430007Coil Loop Insert B-16 Straight1/2″ x 4″each
MB 430023Coil Loop Insert B-16 Straight1/2″ x 6″each
Description

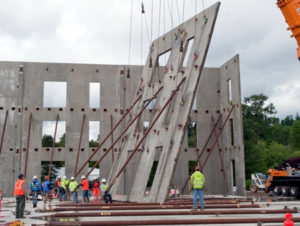

Tilt-up is a job-site form of precast concrete construction. It involves prefabricating concrete wall sections, then lifting or tilting them up. Once they are in position, the panels are temporarily braced until they are tied into the roof and floor system. It is a fast, simple, and economical method of construction, which most recently been adapted successfully to multi-story structures.

Dayton Superior has been instrumental in developing and manufacturing the hardware necessary in the most critical steps for this method of construction — that of lifting the wall panel and placing it without damage. Our product development team continues to strive to provide a complete package for economical and safe construction of tilt-up buildings.
