Polycast Presloped Drain System

POLYCAST optimizes three key factors affecting drainage: slope, drain design and interior finish. The result is drainage so superior that Polycast can be used in lieu of lager poured-in-place systems.

Polycast is available in convenient 4-foot sections and 2-foot half sections, each with a build-in 0.65 percent slope to affect full drainage.

With the proper components, flow rates of 470 GPM per outlet are attainable. The precast trench sections and grates are made up of 2′ and 4′ lengths. Certain 4′ channels and all half channels have 4″ bottom cut-outs for pipe connections.

AS&G stocks a wide range of Polycast accessories (i. e. channels, catch-basins, grates, etc.) and would like to assist in the proper design of a drain system to meet your individual requirements.

Typical Applications

  • Shopping Malls

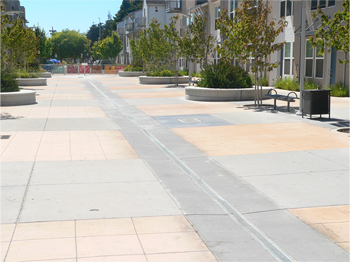

  • Sidewalks & Walkways
  • Parking Lots & Garages

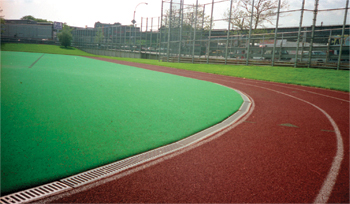

  • Athletic Complexes
  • Loading Docks
  • Kennels
  • Hotels
  • Swimming Pools
  • Wineries
  • Grocery Stores

Polycast 600 Series [Info]
Polycast Installation Guide

Product NumberChannel NumberInlet Dim. “A”Outlet Dim. “B”Weight
PCDP 0601Channel #6014-1/16″4-3/8″38 lbs
PCDP 0602Channel #6024-3/8″4-11/16″43 lbs
PCDP 0603Channel #6034-11/16″5″43 lbs
PCDP 0604Channel #6045″5-5/16″44 lbs
PCDP 0605Channel #6055-5/16″5-5/8″45 lbs
PCDP 0605NChannel #605N5-5/8″5-5/8″46 lbs
PCDP 0605HChannel #605H5-5/8″5-5/8″22 lbs
PCDP 0606Channel #6065-5/8″5-15/16″47 lbs
PCDP 0607Channel #6075-15/16″6-1/4″50 lbs
PCDP 0608Channel #6086-1/4″6-9/16″51 lbs
PCDP 0609Channel #6096-9/16″6-7/8″52 lbs
PCDP 0610Channel #6106-7/8″7-3/16″54 lbs
PCDP 0611Channel #6117-3/16″7-1/2″55 lbs
PCDP 0612Channel #6127-1/2″7-13/16″56 lbs
PCDP 0613Channel #6137-13/16″8-1/8″57 lbs
PCDP 0614Channel #6148-1/8″8-7/16″59 lbs
PCDP 0615Channel #6158-7/16″8-3/4″60 lbs
PCDP 0615NChannel #615N8-3/4″8-3/4″60 lbs
PCDP 0615HChannel #615H8-3/4″8-3/4″30 lbs
PCDP 0616Channel #6168-3/4″9-1/16″61 lbs
PCDP 0617Channel #6179-1/16″9-3/8″62 lbs
PCDP 0618Channel #6189-3/8″9-11/16″63 lbs
PCDP 0619Channel #6199-11/16″10″64 lbs
PCDP 0620Channel #62010″10-5/16″67 lbs
PCDP 0621Channel #62110-5/16″10-5/8″68 lbs
PCDP 0622Channel #62210-5/8″10-15/16″71 lbs
PCDP 0623Channel #62310-15/16″11-1/4″73 lbs
PCDP 0624Channel #62411-1/4″11-9/16″75 lbs
PCDP 0625Channel #62511-9/16″11-7/8″76 lbs
PCDP 0625NChannel #625N11-7/8″11-7/8″77 lbs
PCDP 0625HChannel #625H11-7/8″11-7/8″38 lbs
