TufTile ADA Detectable Warning Products - Polymer & Cast-Iron

TufTile ADA Detectable Warning Products – Polymer & Cast-Iron

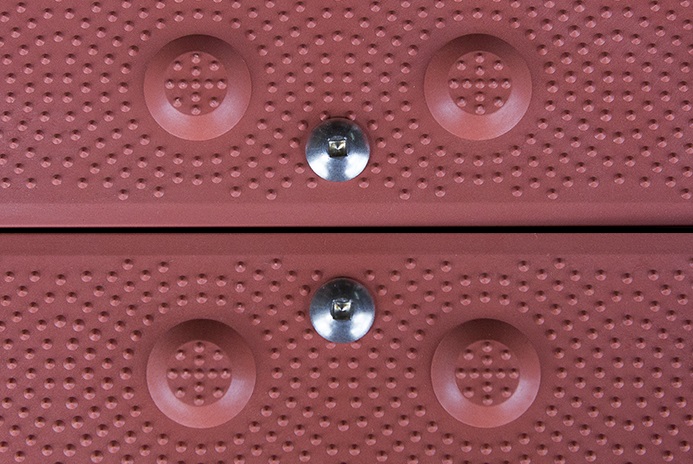

In developing TufTile we focused on both the polymer used in the production of our tiles and on the geometry of the tile.

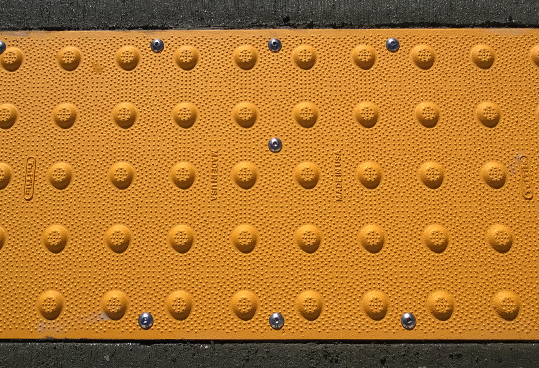

TufTile’s Cast Iron ADA Tactile Tiles are manufactured domestically with durable cast iron that offers exceptional performance characteristics.

Compliant with ADAAG / PROWAG / CA Title 24
Durable rust resistant finish on all tile color options
Great for use in areas where heavy tile abuse is possible including areas subject to snowplowing
ADA compliant wet & dry slip-resistant surface
Cast iron wet-set tiles are for new construction
Unique “umbrella” style anchors lock tile securely into concrete
Uniform tile underside eliminates trapping air during installation

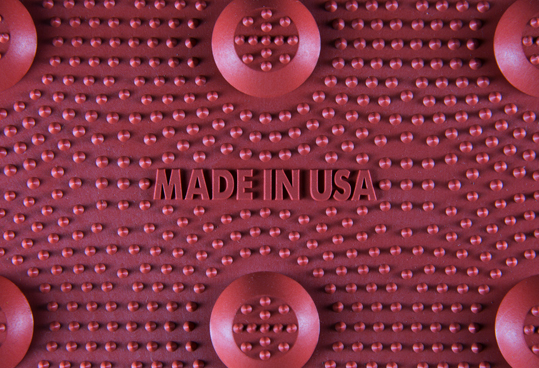

Made in USA
Patent No. US D691,743 S
TufTile Cast Iron [Submittal]

Product Number	Description	Size	Color
TTCI 2412-WS	Cast Iron	2 ft x 1 ft	Yellow
TTCI 2424-WS	Cast Iron	2 ft x 2 ft	Yellow
TTCI 2430-WS	Cast Iron	2 ft x 2.5 ft	Yellow
TT 15R-WS	Cast Iron	Radius 15R	Yellow
TT 20R-WS	Cast Iron	Radius 20R	Yellow
TT 25R-WS	Cast Iron	Radius 25R	Yellow
TT 30R-WS	Cast Iron	Radius 30R	Yellow
TTPY 2412-WSYEL	Polymer	2 ft x 1 ft	Yellow
TTPY 2424-WSYEL	Polymer	2 ft x 2 ft	Yellow
TTPY 2436-WSYEL	Polymer	2 ft x 3 ft	Yellow
TTPY 2448-WSYEL	Polymer	2 ft x 4 ft	Yellow
TTPY 2460-WSYEL	Polymer	2 ft x 5 ft	Yellow
TTPY 15R-WSYEL	Polymer	Radius 15R	Yellow
TTPY 20R-WSYEL	Polymer	Radius 20R	Yellow
TTPY 25R-WSYEL	Polymer	Radius 25R	Yellow
TTPY 30R-WSYEL	Polymer	Radius 30R	Yellow
TTPY 15R-WSRED	Polymer	Radius 15R	Red
TTPY 20R-WSRED	Polymer	Radius 20R	Red
TTPY 25R-WSRED	Polymer	Radius 25R	Red
TTPY 30R-WSRED	Polymer	Radius 30R	Red
TTPY 2412-WSRED	Polymer	2 ft x 1 ft	Red
TTPY 2424-WSRED	Polymer	2 ft x 2 ft	Red
TTPY 2436-WSRED	Polymer	2 ft x 3 ft	Red
TTPY 2448-WSRED	Polymer	2 ft x 4 ft	Red
TTPY 2460-WSRED	Polymer	2 ft x 5 ft	Red
TT-CONNECTOR	TufTile Connector
TT-ANCHOR-WS	TufTile Anchor
TT-SCREW-SQD	TufTile Screw – Tamper Resistant
